We are a professional Chinese carton machinery manufacturer. Our advantage lies in having a team of professional engineers, who are capable of custom - designing machines according to customers' specific requirements. Take the 3/5/7 - layer corrugated board production line shown below as an example. Additionally, considering different budget constraints of customers, we are also able to provide other corrugated board production lines.1800 2000 2200 2500 2800 3000 3300
The 2 Ply Corrugated Board Production Line, an automated equipment specially designed for manufacturing single-layer corrugated structure boards (face paper + corrugated medium) with lightweight and cost-effective advantages, omits the compounding process of middle paper and liner paper compared with traditional 3/5-ply production lines, focuses on high-speed production of single-layer corrugated structures at a line speed of 80-120 meters per minute and a daily capacity of 300,000 to 500,000 square meters for packaging scenarios requiring low cushioning but lightweight design, and includes mill roll stander, single facer machine, and sheet cutting with stacker machine.1600 1800 2000 2200 2500
The hydraulic shaftless mill roll stand is a key piece of equipment used in industrial sectors such as metal rolling, papermaking, and film processing, adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others, the lifting of the paper adopts hydraulic drive.1600
Automatic 5 layer corrugated cardboard production line is the professional advanced equipment for produce single layer, single wall(3layer), double wall(5layer)corrugated cardboard. The production line consists of mill rolls tand, liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double baker, slitter scorer machine, NC cut-off, conveyor and stacker, heating system. Air compression system, glue making system etc.1800 2000 2200 2500 2800 3300

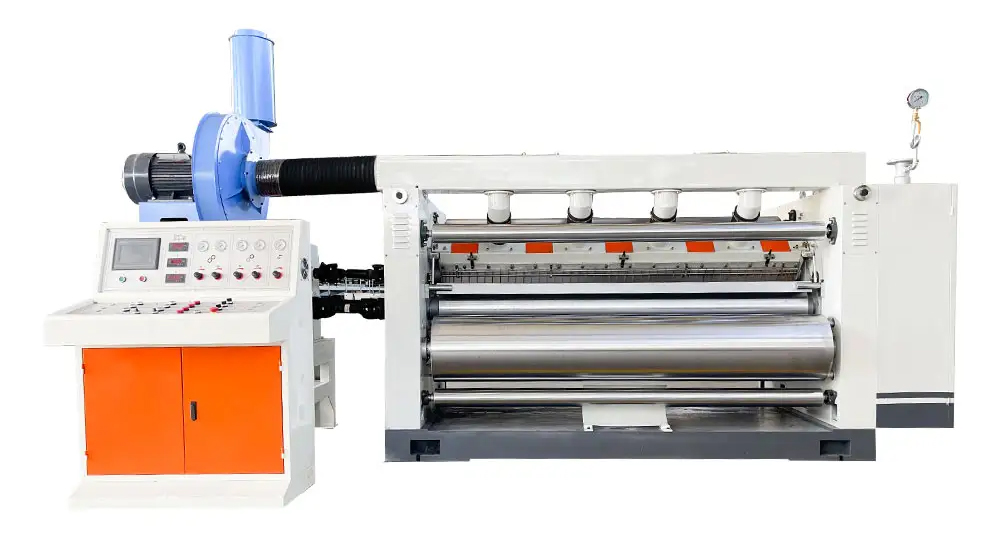

Single Facer Corrugated Machine Single Sided Machine Production Line for Cardboard
15.5-55kw
Cardboard transmit adopt vacuum suction method, with wind control system, keep flute profiles stable of the lower - roller in the condition of running up. Bearing use congealed and pressure roller adopt high temperature grease.
Quantity
single facer corrugated machine production line
single facer corrugated machine production line | |
Design speed | 120-180m/min |
Effective width | 1400-2500mm |
Corrugated roller diameter | 280-360mm |
Flute roller material | 48CrMo alloy steel or tungsten is option |
Flute type | A, B, C, E flute are available |
Flute roller hardness | from 50-60degree |
Warranty | one year for spare parts change |
Single facer corrugated machine production line function:
320C Design Speed: 150m/min
Effective width: 1400mm-2200mm
Corrugated roller: 320mm/360mm
Single facer corrugated machine production line characteristic:
1.single facer corrugated machine production line drive reducer box with oil immersed type lubricating to reduce noise keep running stable. adopt gimbal transmission. separate power.(optional)
2.single facer corrugated machine production line corrugating roller, pressure roller and glue roller by pneumatic adjustment.
3.single facer corrugated machine production line cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.
4.single facer corrugated machine production line bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.
5.single facer corrugated machine production line upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. single facer corrugated machine production line hardness is above HV1200, single facer corrugated machine production line surface be dealing with tungsten carbide. single facer corrugated machine production line glue part surface are treated by special mesh snicked and chromeplated.
7.single facer corrugated machine production line manud or electric insulation glue device. Glue part can be running independently or non-independently while stopped.1.
2.single facer corrugated machine production line corrugating roller, pressure roller and glue roller by pneumatic adjustment.
3.single facer corrugated machine production line cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.
4.single facer corrugated machine production line bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.
5.single facer corrugated machine production line upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. single facer corrugated machine production line hardness is above HV1200, single facer corrugated machine production line surface be dealing with tungsten carbide. single facer corrugated machine production line glue part surface are treated by special mesh snicked and chromeplated.
7.single facer corrugated machine production line manud or electric insulation glue device. Glue part can be running independently or non-independently while stopped.1.
Functions and Advantages of single facer corrugated machine
in corrugated cardboard production line
- Single facer corrugated machine production line
- Single facer corrugated machine production line corrugation Forming System
Single facer corrugated machine composed of upper and lower corrugating rolls (surface engraved with specific tooth profiles), it precisely meshes to press corrugated base paper into different specifications of corrugated shapes such as Type A, B, and C. The corrugating rolls are mainly made of high-strength alloy cast iron, with surface quenching treatment to ensure wear resistance and forming accuracy. - Single facer corrugated machine production line gluing and Bonding System
The gluing roll evenly coats starch adhesive on the corrugated crests. The face paper and corrugated base paper are bonded under the action of pressure rolls, and dried and cured by a heating plate to form single-face corrugated board. - Single facer corrugated machine production line tension and Speed Control System
Equipped with tension sensors and frequency conversion motors, it real-time adjusts the conveying speed of base paper to avoid paper wrinkling or breaking, ensuring the flatness of the board.
Therefore, single facers are often linked with equipment such as hydraulic shaftless mill roll stands and double facers. Through automated control systems, single facer corrugated machine production line achieve full-process continuous production, enhancing the overall efficiency of corrugated cardboard production line and the quality of corrugated boards.
Why Choose Us single facer corrugated machine production line?
25+ Years of Expertise: Proven excellence in R&D, manufacturing, and service.
Customized Solutions: Adaptable designs to suit unique client requirements.
Quality Assurance: ISO-certified production processes and rigorous testing.
Global Network: Efficient logistics and technical support worldwide.
Committed to driving innovation in packaging technology, Cangzhou Maiken Machinery Equipment Co., Ltd. remains your trusted partner for smart, sustainable, and cost-effective solutions.
- Our Company

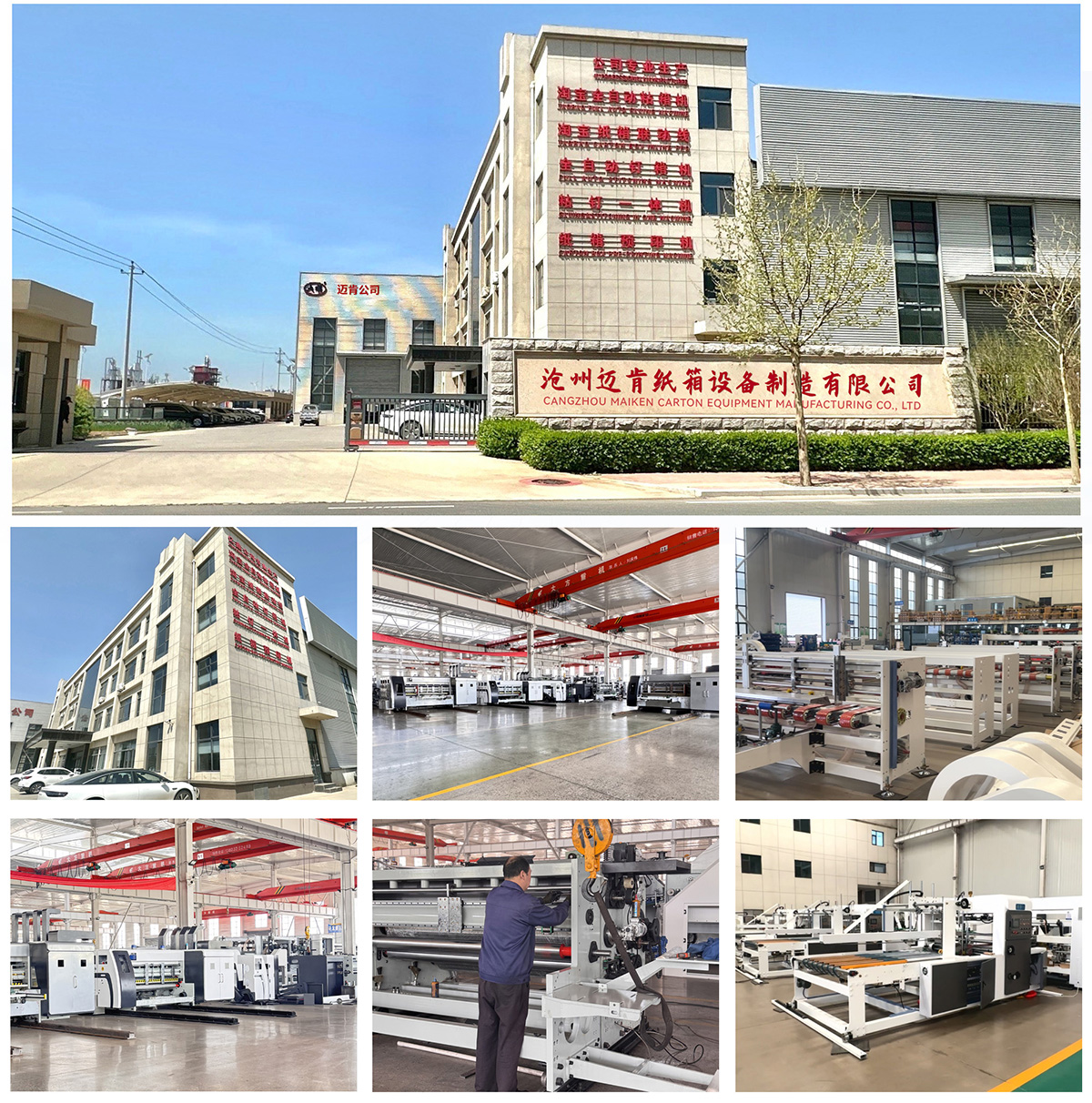

For over 25 years, Cangzhou Maiken Machinery Equipment Co., Ltd. has stood as a leading manufacturer of advanced packaging machinery, delivering innovative solutions to clients worldwide. With a dedicated team of 200 professionals, we specialize in designing and producing high-performance, intelligent equipment tailored to meet the diverse needs of the global packaging industry. We pride ourselves on offering a comprehensive range of carton equipment, including high-speed intelligent carton production lines, high-speed water-based ink printing, slotting and die-cutting machines, fully automatic gluing & stapling combination machines, fully automatic carton gluing machines and fully automatic carton stapling machines. Our cutting-edge machinery combines precision engineering with smart automation, ensuring efficiency, durability, and sustainability for businesses of all scales. Over the years, our products have earned widespread acclaim across domestic and international markets. We serve clients in multiple countries and regions, building long-term partnerships through reliable performance and exceptional after-sales support.
