We are a professional Chinese carton machinery manufacturer. Our advantage lies in having a team of professional engineers, who are capable of custom - designing machines according to customers' specific requirements. Take the 3/5/7 - layer corrugated board production line shown below as an example. Additionally, considering different budget constraints of customers, we are also able to provide other corrugated board production lines.1800 2000 2200 2500 2800 3000 3300
The 2 Ply Corrugated Board Production Line, an automated equipment specially designed for manufacturing single-layer corrugated structure boards (face paper + corrugated medium) with lightweight and cost-effective advantages, omits the compounding process of middle paper and liner paper compared with traditional 3/5-ply production lines, focuses on high-speed production of single-layer corrugated structures at a line speed of 80-120 meters per minute and a daily capacity of 300,000 to 500,000 square meters for packaging scenarios requiring low cushioning but lightweight design, and includes mill roll stander, single facer machine, and sheet cutting with stacker machine.1600 1800 2000 2200 2500
The hydraulic shaftless mill roll stand is a key piece of equipment used in industrial sectors such as metal rolling, papermaking, and film processing, adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others, the lifting of the paper adopts hydraulic drive.1600
Cardboard transmit adopt vacuum suction method, with wind control system, keep flute profiles stable of the lower - roller in the condition of running up. Bearing use congealed and pressure roller adopt high temperature grease.15.5-55kw
5 Layers Corrugated Cardboard Production Line
| 5 Layers Corrugated Cardboard Production Line | ||||
1 | Model | DY150-1800-3ply | DY150-1800-5ply | DY100-1800-7ply |
2 | Space | 50m×11m×4.5m | 67m×11m×4.5m | 80m×11m×5m |
3 | Design speed | 150m/min | 150m/min | 150m/min |
4 | Working speed | 120m/min | 100m/min | 80m/min |
5 | Working width | 1800mm | 1800mm | 1800mm |
6 | Corrugated flute | (A, C, B, E (or selected by the customer) Note: The contract shall be subject to the confirmation of the customer) | ||
7 | Steam pressure | Steam capacity 4000Kg/Hr Maximum steam pressure:1.2mpa Common pressure: 0.8-1.1mpa | Steam capacity 4000Kg/Hr Maximum steam pressure: 1.2mpa Common pressure: 0.8-1.1mpa | Steam capacity 6000Kg/Hr Maximum steam pressure: 1.2mpa Common pressure: 0.8-1.1mpa |
8 | Total power | Approximately 150 kw | Approximately 350 kw Actual power consumption: about 250kW (full speed) | Approximately 350kw Actual power consumption: about 250kW (full speed) |
9 | Direction of operating | Customer decides(left or right side) | ||
10 | Power | three-phase four-wire system | ||

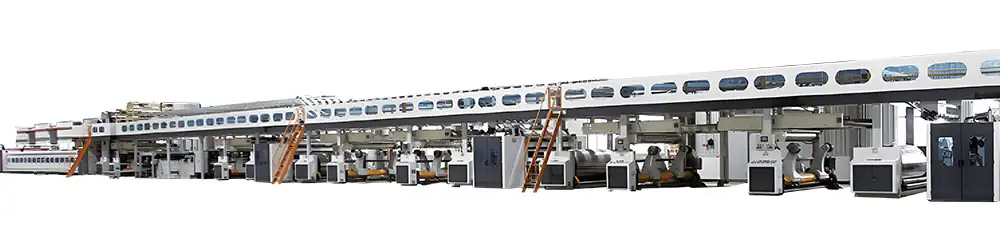

5 Layers Corrugated Cardboard Production Line
Core Equipment for High-Performance Packaging Solutions
The 5 Layers Corrugated Cardboard Production Line mainly consists of the following components:
- Unwinder: Used for placing roll-form raw paper.
- Preheater: Preheats the raw paper.
- Single Facer: Presses raw paper into single-face corrugated board.
- Overpass Conveyor: Transports single-face corrugated board.
- Double Facer: Glues single-face corrugated boards into double-face corrugated board.
- Drying Equipment: Dries the board.
- Cutting System: Cuts the board into required specifications.
- Stacking System: Stacks the cut boards neatly.
One of the significant advantages of our 5 Layers Corrugated Cardboard Production Line with Production Management System is the high production efficiency, which can reach up to 100 meters per minute. 5 Layers Corrugated Cardboard Production Line equipment comes with a production management system that greatly reduces production time and waste, thereby saving costs for our customers.
5 Layers Corrugated Cardboard Production Line precise control system ensures the production of corrugated cardboard with stable quality, uniform thickness and strength. 5 Layers Corrugated Cardboard Production Line due to the use of high-quality materials and components, the device is also durable and requires little to maintenance.
5 Layers Corrugated Cardboard Production Line Benefits To Customers
For our customers, investing in this production line brings multiple benefits. First, increased productivity means higher output and greater profitability. Consistency in product quality enhances the customer's reputation in the market.
Production management systems simplify operational processes and reduce the need for extensive manpower and training. Additionally, 5 Layers Corrugated Cardboard Production Line equipment has a long service life and low maintenance requirements, reducing operating costs over time.
The demand for environmentally friendly corrugated board is rising, so it is a good choice for customers to invest in 5 Layers Corrugated Cardboard Production Line with Production Management System now.
Why Choose Us 5 Layers Corrugated Cardboard Production Line?
25+ Years of Expertise: Proven excellence in R&D, manufacturing, and service.
Customized Solutions: Adaptable designs to suit unique client requirements.
Quality Assurance: ISO-certified production processes and rigorous testing.
Global Network: Efficient logistics and technical support worldwide.
Committed to driving innovation in packaging technology, Cangzhou Maiken Machinery Equipment Co., Ltd. remains your trusted partner for smart, sustainable, and cost-effective solutions.
