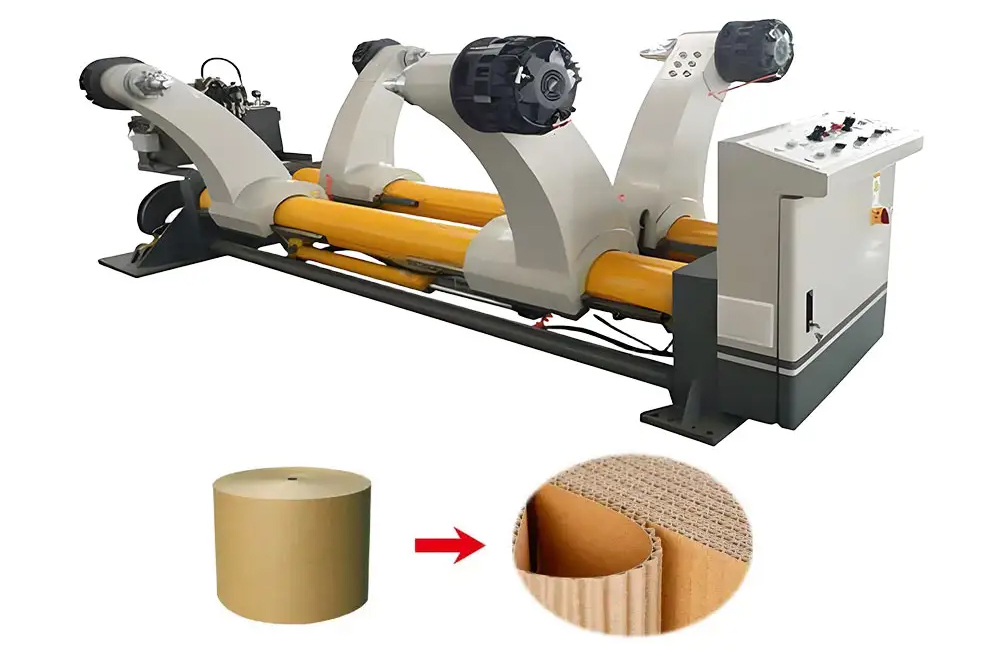

Hydraulic Shaftless Mill Roll Stand
1600
The hydraulic shaftless mill roll stand is a key piece of equipment used in industrial sectors such as metal rolling, papermaking, and film processing, adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others, the lifting of the paper adopts hydraulic drive.
Quantity
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line through the electric or hydraulic adjustment, can control the lifting, the left and right translation of the original paper rolls.
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line adopts a symmetrical four-arm structure with a single slideway, which can support two rolls of base paper at the same time.
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line Use disc manual brakes to adjust the original paper at any time.
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line clamping and mechanical rotation of the branches have a constant torque clutch, which is safe and reliable.

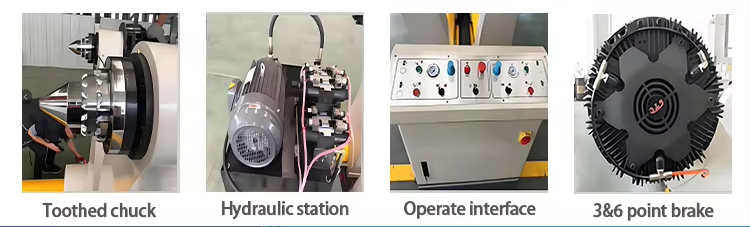

Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line Feature
1.Expiry width:800-2200mm,clamping paper diameter: Max:1500mm, Min:350mm.
2.Single arm max load weight: 3.0ton
2.Single arm max load weight: 3.0ton
3.Symmetrical structure may also install two original paper, tube bundle is kept for paper assignments.
4.Adopts hydraulic drive, can complete base paper lifting, clamping, loosen, move on.
4.Adopts hydraulic drive, can complete base paper lifting, clamping, loosen, move on.
5.Adopt pneumatic tension adjust base paper tension and automatically bulge style chuck.
6.Tension control equipped with pneumatic brake,also can connect with automatic paper splicer to achieve quick paper supply.
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line | ||||
Width | 1200mm-2200mm | |||
Max Reel Dia | 1500mm | |||
Min Axis Dia | 242mm | |||
Max Load Capacity | 3T | |||
Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line
- Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line Function
In corrugated cardboard production line,Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line are mainly used for raw paper support and unwinding, serving as a type of raw paper stand. They undertake the task of placing raw paper reels. Driven by hydraulic systems, they achieve actions such as clamping, releasing, lifting, and left-right translation of raw paper, enabling stable and smooth feeding of raw paper into subsequent processes (such as processing by single facers, double facers, and other equipment). Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line are one of the key devices ensuring continuous and stable raw paper supply, providing fundamental support for the subsequent forming of corrugated boards.
- Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line
- Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line Efficient Roll Change & Continuous Production
Enables non-stop paper roll loading/unloading, reducing roll change time by over 50% compared to traditional shafted structures, significantly improving production line utilization. - Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line Precise Tension Control
Pneumatic braking devices ensure tension fluctuation ≤5N, preventing raw paper wrinkling/breakage, guaranteeing uniform board thickness and bonding strength, and reducing rejection rate by 10%-15%. - Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line Flexible Adaptability
Compatible with raw paper rolls of different widths (1-3m) and grammages (80-300g/m²), and can flexibly adjust positions to fit single facers, double facers, and other equipment. - Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line Low Wear & Easy Maintenance
Shaftless design minimizes mechanical wear. Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line modular hydraulic system enhances component replacement efficiency by 30% and reduces maintenance costs by 20%.
In short, Hydraulic Shaftless Mill Roll Stand corrugated cardboard Production Line stabilizes raw paper supply for corrugated cardboard production line, speeds up roll changes, ensures quality, adapts to diverse production needs, reduces costs, and serves as a key device to boost efficient and high-quality line operation.
