The 2 Ply Corrugated Board Production Line, an automated equipment specially designed for manufacturing single-layer corrugated structure boards (face paper + corrugated medium) with lightweight and cost-effective advantages, omits the compounding process of middle paper and liner paper compared with traditional 3/5-ply production lines, focuses on high-speed production of single-layer corrugated structures at a line speed of 80-120 meters per minute and a daily capacity of 300,000 to 500,000 square meters for packaging scenarios requiring low cushioning but lightweight design, and includes mill roll stander, single facer machine, and sheet cutting with stacker machine.1600 1800 2000 2200 2500

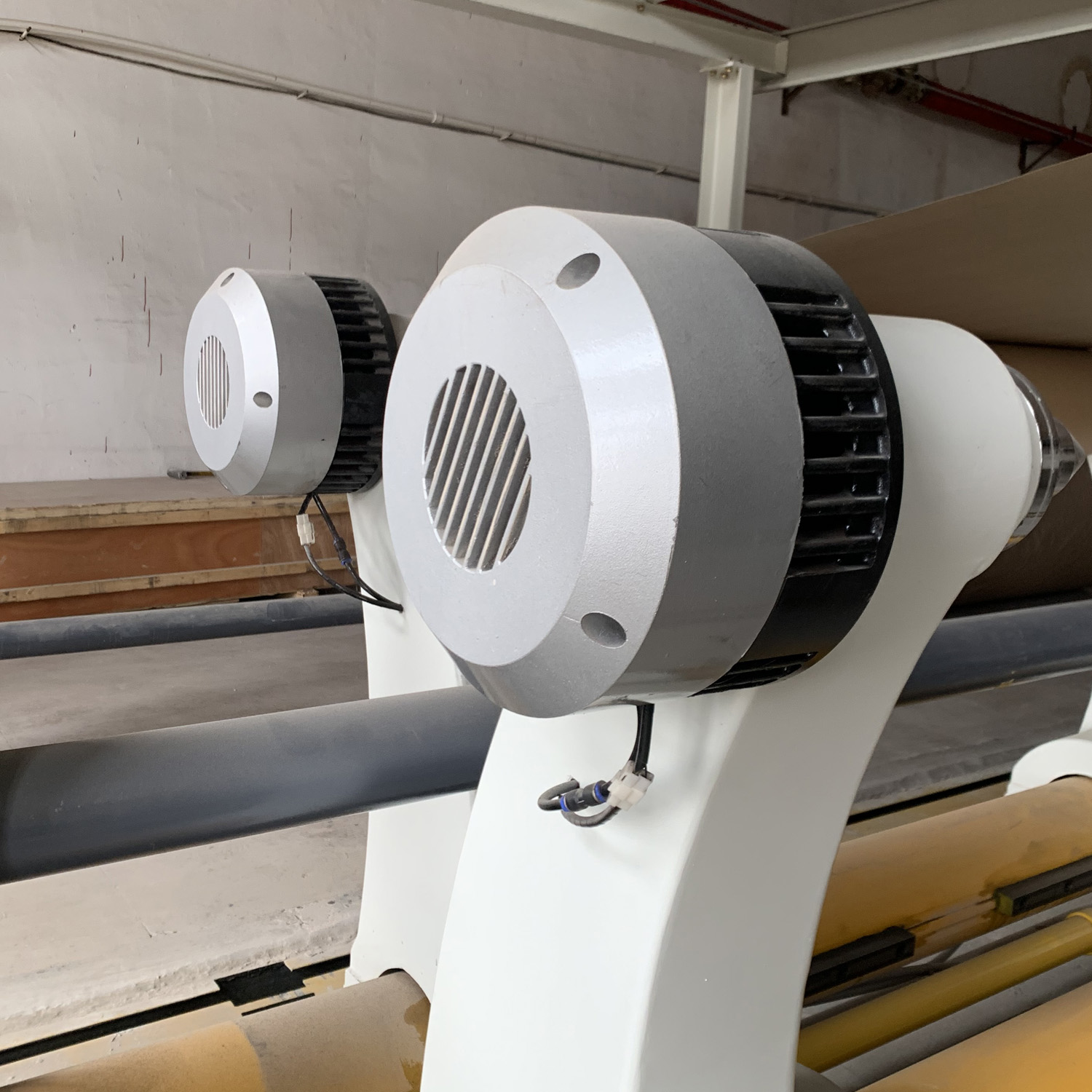

The hydraulic shaftless mill roll stand is a key piece of equipment used in industrial sectors such as metal rolling, papermaking, and film processing, adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others, the lifting of the paper adopts hydraulic drive.1600
Cardboard transmit adopt vacuum suction method, with wind control system, keep flute profiles stable of the lower - roller in the condition of running up. Bearing use congealed and pressure roller adopt high temperature grease.15.5-55kw
Automatic 5 layer corrugated cardboard production line is the professional advanced equipment for produce single layer, single wall(3layer), double wall(5layer)corrugated cardboard. The production line consists of mill rolls tand, liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double baker, slitter scorer machine, NC cut-off, conveyor and stacker, heating system. Air compression system, glue making system etc.1800 2000 2200 2500 2800 3300
3/5/7 Layers corrugated board production line
1800 2000 2200 2500 2800 3000 3300
We are a professional Chinese carton machinery manufacturer. Our advantage lies in having a team of professional engineers, who are capable of custom - designing machines according to customers' specific requirements. Take the 3/5/7 - layer corrugated board production line shown below as an example. Additionally, considering different budget constraints of customers, we are also able to provide other corrugated board production lines.
Quantity
3/5/7 Layers corrugated board production line
3/5/7 Layers corrugated board production line description
3/5/7 Layers corrugated board production line serves as the foundational framework for manufacturing high-strength board materials, integrating processes like paper unwinding, corrugation forming, and lamination to produce base materials with customizable flute structures. 3/5/7 Layers corrugated board production line materials are then further processed into corrugated liners, which are functional packaging components such as protective inserts, dividers, or edge guards, designed to enhance cushioning and structural support for goods during transportation. Building on this, the 3/5/7 Layers corrugated board production line represents an advanced, versatile system that leverages the output from the base production line to create multi-layered cardboard boxes—ranging from lightweight 3-layer designs for delicate products to heavy-duty 7-layer configurations for industrial packaging—by combining different flute combinations (like AB, BC, or ABC) to balance strength, cushioning, and cost-effectiveness for diverse industry needs.
3/5/7 Layers corrugated board production line product Advantages
One of the significant advantages of our 3/5/7 Layers corrugated board production line equipped with a production management system is their high production efficiency, with speeds reaching 150-300 meters per minute. 3/5/7 Layers corrugated board production line production management system integrated into the equipment significantly reduces production time and waste, thus saving costs for our customers.
3/5/7 Layers corrugated board production line precise control system ensures stable quality of the produced corrugated cardboard, with uniform thickness and strength. Thanks to the use of high-quality materials and components, 3/5/7 Layers corrugated board production line equipment is durable and requires minimal maintenance.
- 3/5/7 Layers corrugated board production line
3/5/7 Layers corrugated board production line
1 | Model | DY150-1800-3ply | DY150-1800-5ply | DY100-1800-7ply |
2 | Space | 50m×11m×4.5m | 67m×11m×4.5m | 80m×11m×5m |
3 | Design speed | 150m/min | 150m/min | 150m/min |
4 | Working speed | 120m/min | 100m/min | 80m/min |
5 | Working width | 1800mm | 1800mm | 1800mm |
6 | Corrugated flute | (A, C, B, E (or selected by the customer) Note: The contract shall be subject to the confirmation of the customer) | ||
7 | Steam pressure | Steam capacity 4000Kg/Hr Maximum steam pressure:1.2mpa Common pressure: 0.8-1.1mpa | Steam capacity 4000Kg/Hr Maximum steam pressure: 1.2mpa Common pressure: 0.8-1.1mpa | Steam capacity 6000Kg/Hr Maximum steam pressure: 1.2mpa Common pressure: 0.8-1.1mpa |
8 | Total power | Approximately 150 kw | Approximately 350 kw Actual power consumption: about 250kW (full speed) | Approximately 350kw Actual power consumption: about 250kW (full speed) |
9 | Direction of operating | Customer decides(left or right side) | ||
10 | Power | three-phase four-wire system | ||

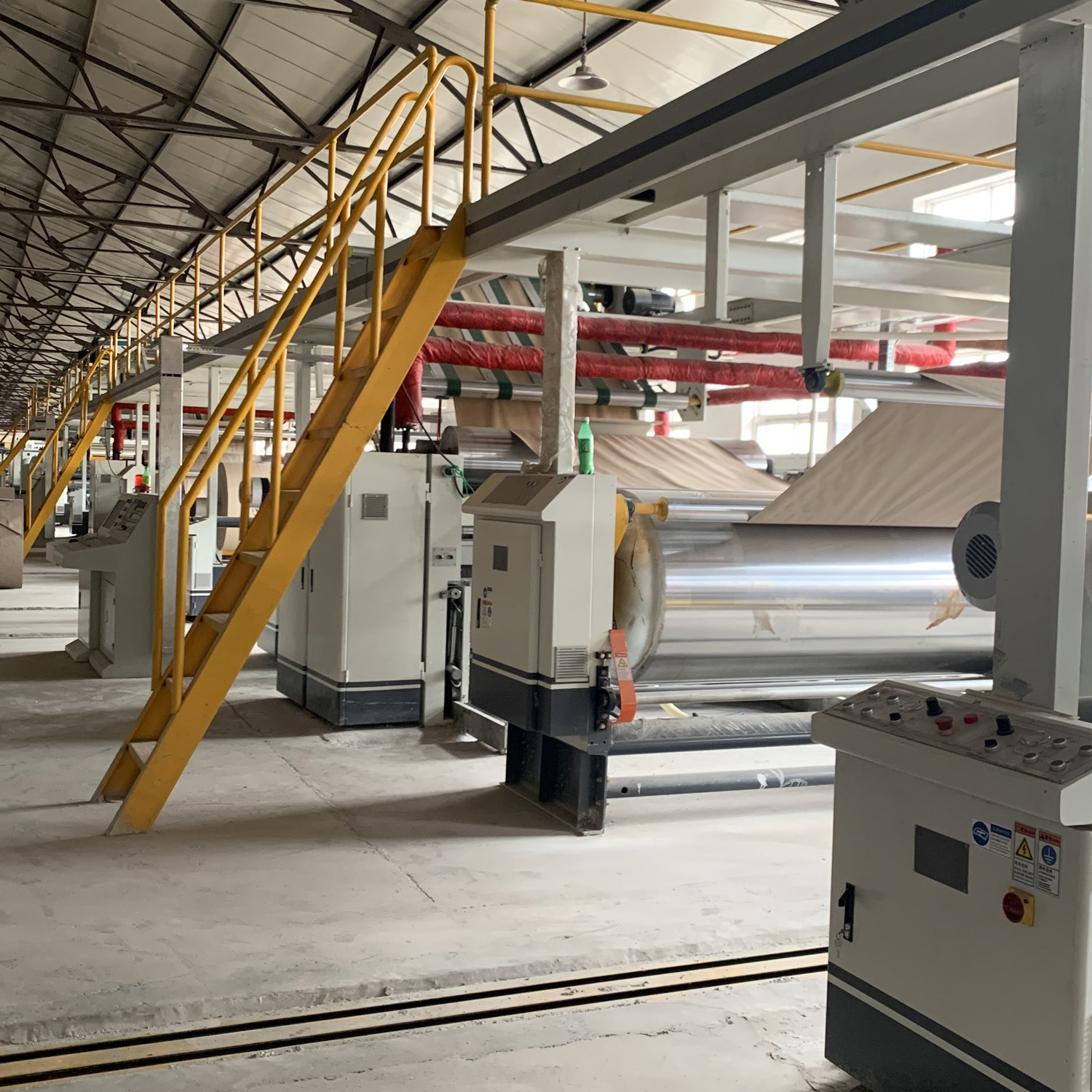

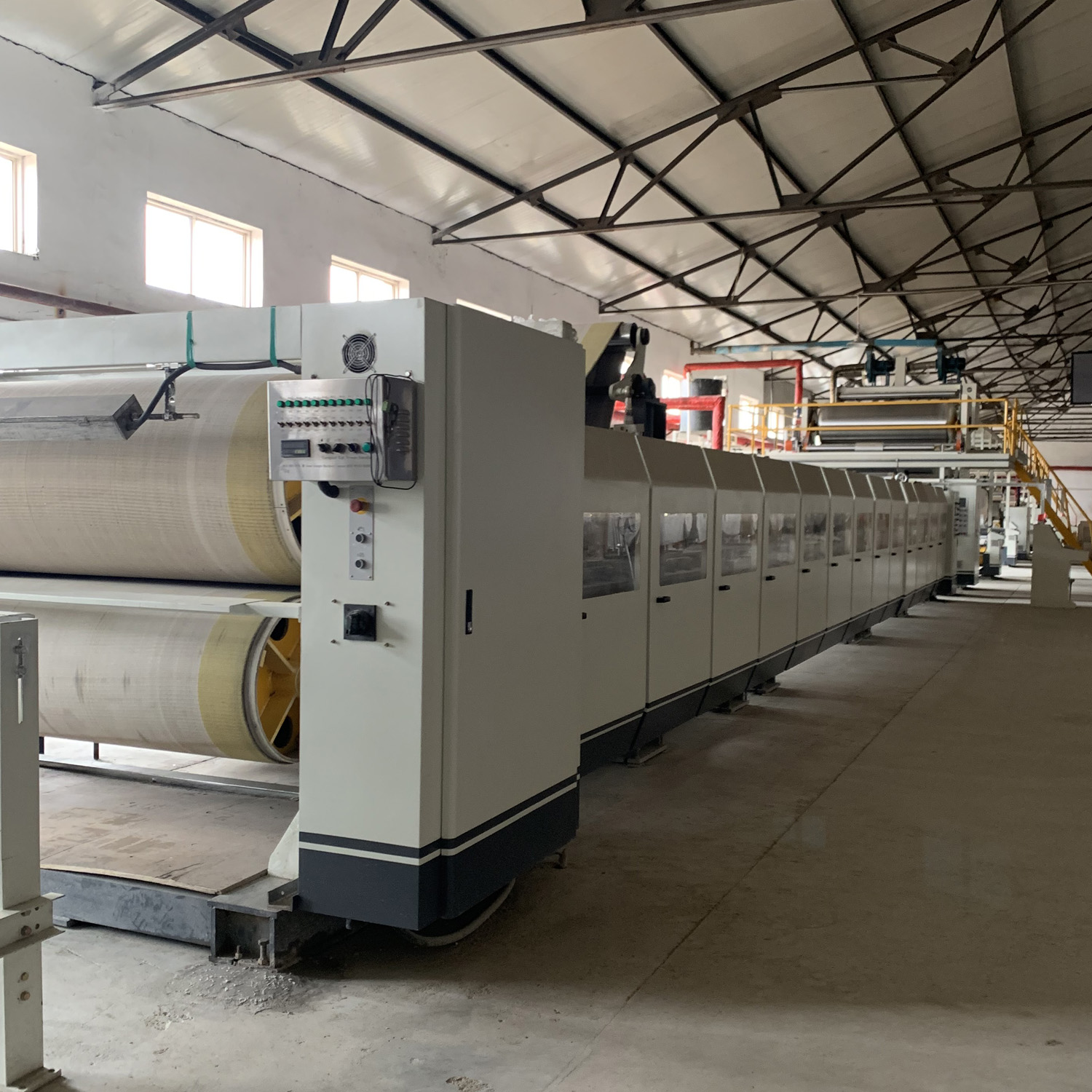

- Detailed display of the 3/5/7 Layers corrugated board production line

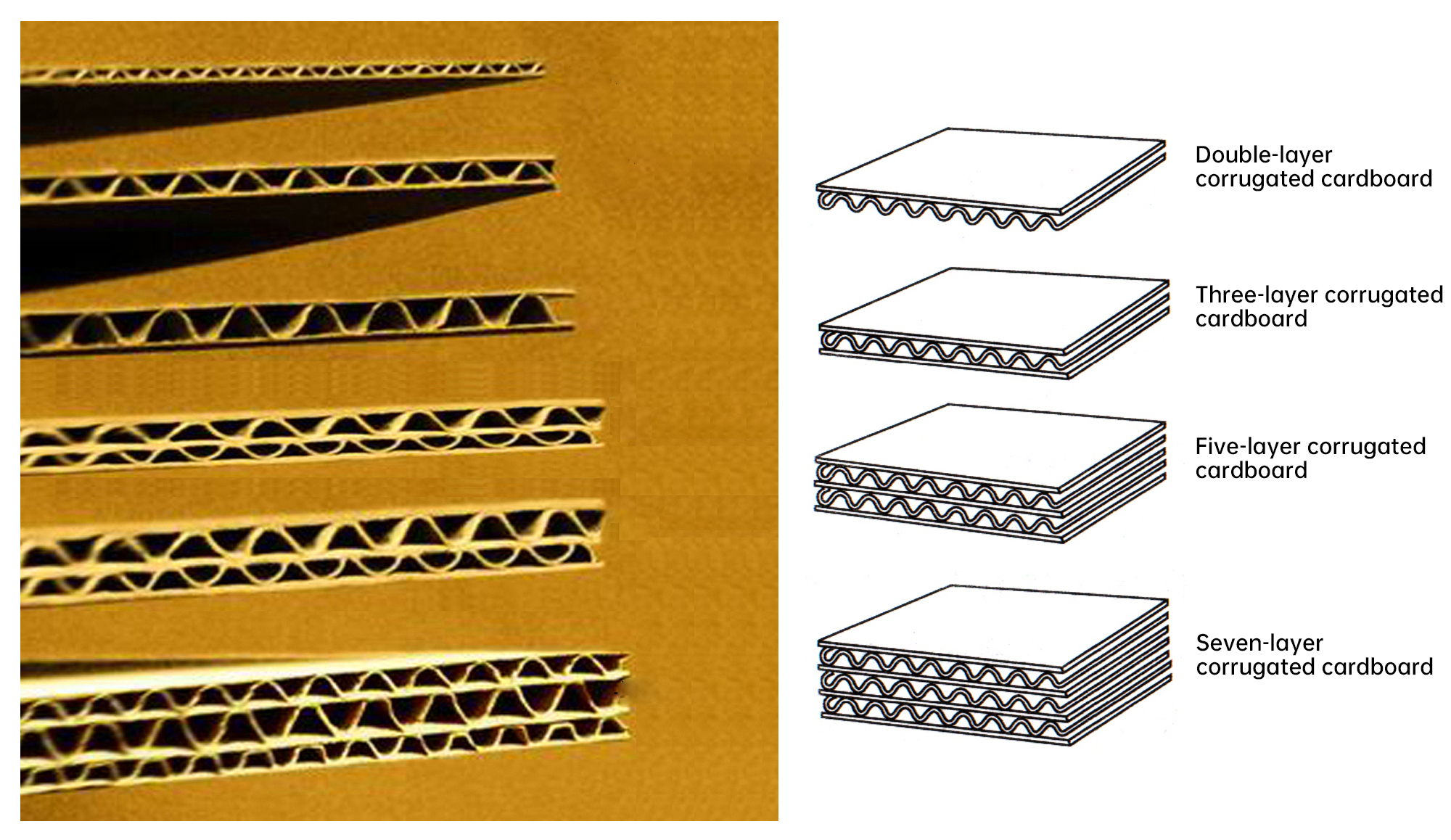

- 3/5/7 Layers corrugated board production line cardboard
3/5/7 Layers corrugated board production line typical 5-layer structure (face paper + corrugated medium + middle paper + corrugated medium + liner paper) achieves a balance between compressive strength and cushioning performance through flute combinations (such as AB flute, BC flute).
Why Choose Us 3/5/7 Layers corrugated board production line ?
25+ Years of Expertise: Proven excellence in R&D, manufacturing, and service.
Customized Solutions: Adaptable designs to suit unique client requirements.
Quality Assurance: ISO-certified production processes and rigorous testing.
Global Network: Efficient logistics and technical support worldwide.
Committed to driving innovation in packaging technology, Cangzhou Maiken Machinery Equipment Co., Ltd. remains your trusted partner for smart, sustainable, and cost-effective solutions.
- Our Company
For over 25 years, Cangzhou Maiken Machinery Equipment Co., Ltd. has stood as a leading manufacturer of advanced packaging machinery, delivering innovative solutions to clients worldwide. With a dedicated team of 200 professionals, we specialize in designing and producing high-performance, intelligent equipment tailored to meet the diverse needs of the global packaging industry. We pride ourselves on offering a comprehensive range of carton equipment, including high-speed intelligent carton production lines, high-speed water-based ink printing, slotting and die-cutting machines, fully automatic gluing & stapling combination machines, fully automatic carton gluing machines and fully automatic carton stapling machines. Our cutting-edge machinery combines precision engineering with smart automation, ensuring efficiency, durability, and sustainability for businesses of all scales. Over the years, our products have earned widespread acclaim across domestic and international markets. We serve clients in multiple countries and regions, building long-term partnerships through reliable performance and exceptional after-sales support.
