Semi-auto corrugated laminating machine

Semi-auto corrugated laminating machine

Semi-auto corrugated laminating machine features independent technical R&D, making it an innovative enterprise in China specializing in Semi-auto corrugated laminating machines. Equipped with a PLC control system, Semi-auto corrugated laminating machine ensures precise and stable paper feeding, significantly improving work efficiency while offering fault display and automatic alarm functions. Semi-auto corrugated laminating machine adopts Taiwan Delta servo motors for single-control independent operation, enabling simple operation, fast speed, and better processing accuracy. The base paper uses vacuum suction for automatic feeding, which can continuously and automatically track the speed of the facing paper. With advanced elastic front registration positioning, Semi-auto corrugated laminating machine achieves high positioning accuracy to prevent the base paper from advancing ahead, ensuring optimal alignment between the facing and base papers.

Semi-auto corrugated laminating machine

•  Semi-auto corrugated laminating machine：Independent research and development, we are the first production enterprises of semi - automatic high - speed servo machine.
• Semi-auto corrugated laminating machine：Semi-auto corrugated laminating machine whole machine adopts PLC control system, compared with other delay device or intermediate relay control, paper feeding is more accurate and stable, and greatly improve the speed, circuit fault can automatically display alarm.
•  Semi-auto corrugated laminating machine： Taiwan Delta servo motor is adopted to eliminate the signal conversion control of clutch, brake and bottom light eye, and
• Semi-auto corrugated laminating machine：realize the independent operation of PLC and servo single control, with fast speed, high precision and easy operation.
• Semi-auto corrugated laminating machine：Semi-auto corrugated laminating machine base paper adopts vacuum adsorption automatic paper feeding, which can automatically track the speed and continuity of the face papering and automatically continuous paper feeding.
• Semi-auto corrugated laminating machine：Positioning method adopts advanced elastic front stop positioning, high positioning accuracy, and the base paper is never advance.
• Semi-auto corrugated laminating machine： When the face paper and the base paper laminate, the adjustment of alignment or face paper advance is convenient.
• Semi-auto corrugated laminating machine：Automatic glue replenishment system, can automatically replenish the consumption of glue in the process of laminating, and with the glue recycling, to avoid glue loss and waste.
• Semi-auto corrugated laminating machine:Scientific design of measuring roller linear speed, to avoid glue flying in high - speed.
• Semi-auto corrugated laminating machine：Semi-auto corrugated laminating machine pressure of the pressing roll is adjusted synchronously, which is convenient and fast.
• Semi-auto corrugated laminating machine：Semi-auto corrugated laminating machine rocker controls the lift of the washing roller, which is convenient to clean the lower roller of the glue feeding part and clean thoroughly.
• Semi-auto corrugated laminating machine： Humanized design counter, convenient to record your daily workload, easy for piecework.

Semi-auto corrugated laminating machine
Model	1300	1450	1650
Max laminating size (mm)	1300mm×1250mm	1400mm×1250mm	1600mm×1250mm
Min laminating size (mm)	360mm×360mm	360mm×360mm	360mm×360mm
Economic speed (sheets/min)	0 - 100 sheets/min	0 - 100 sheets/min	0 - 100 sheets/min
Laminating precision (mm)	±1.5mm	±1.5mm	±1.5mm
Power (kw)	6.0kw	6.5kw	6.5kw
Machine dimensions (L×W×H) (meter)	8.8m×1.95m×1.7m	8.8m×2.05m×1.7m	8.8m×2.25m×1.7m
Weight (ton)	About 3.0T	About 3.2T	About 3.5T



  Why Choose Us Semi-auto corrugated laminating machine?

25+ Years of Expertise: Proven excellence in R&D, manufacturing, and service.

Customized Solutions: Adaptable designs to suit unique client requirements.

Quality Assurance: ISO-certified production processes and rigorous testing.

Global Network: Efficient logistics and technical support worldwide.

Committed to driving innovation in packaging technology, Cangzhou Maiken Machinery Equipment Co., Ltd. remains your trusted partner for smart,

sustainable, and cost-effective solutions.

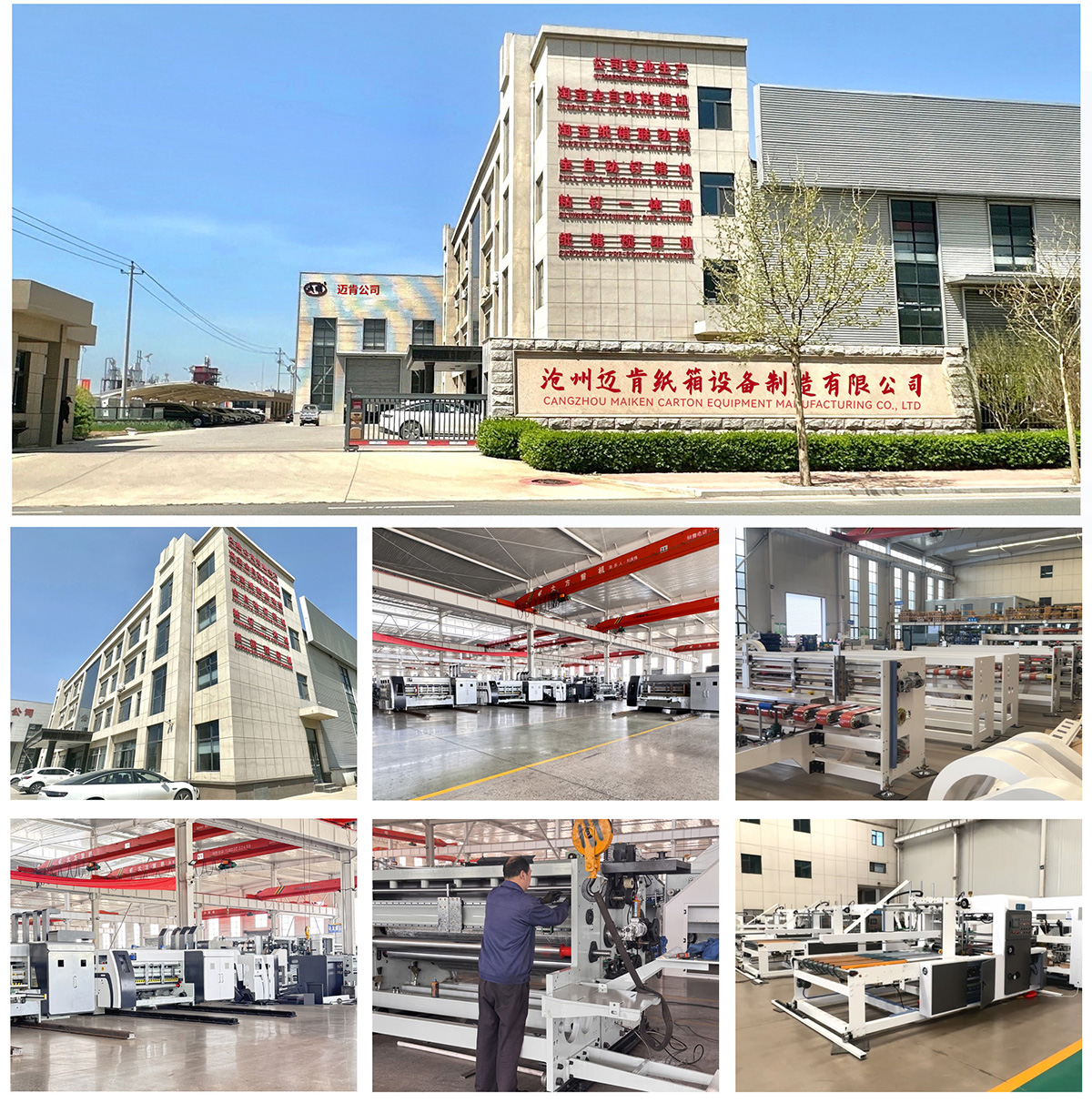

•    Our Company

For over 25 years, Cangzhou Maiken Machinery Equipment Co., Ltd. has stood as a leading manufacturer of advanced packaging machinery, delivering innovative solutions to clients worldwide. With a dedicated team of 200 professionals, we specialize in designing and producing high-performance, intelligent equipment tailored to meet the diverse needs of the global packaging industry. We pride ourselves on offering a comprehensive range of carton equipment, including high-speed intelligent carton production lines, high-speed water-based ink printing, slotting and die-cutting machines, fully automatic gluing & stapling combination machines, fully automatic carton gluing machines and fully automatic carton stapling machines. Our cutting-edge machinery combines precision engineering with smart automation, ensuring efficiency, durability, and sustainability for businesses of all scales. Over the years, our products have earned widespread acclaim across domestic and international markets. We serve clients in multiple countries and regions, building long-term partnerships through reliable performance and exceptional after-sales support.
