Automatic Corrugated Flute Laminating Machine

Automatic Corrugated Flute Laminating Machine

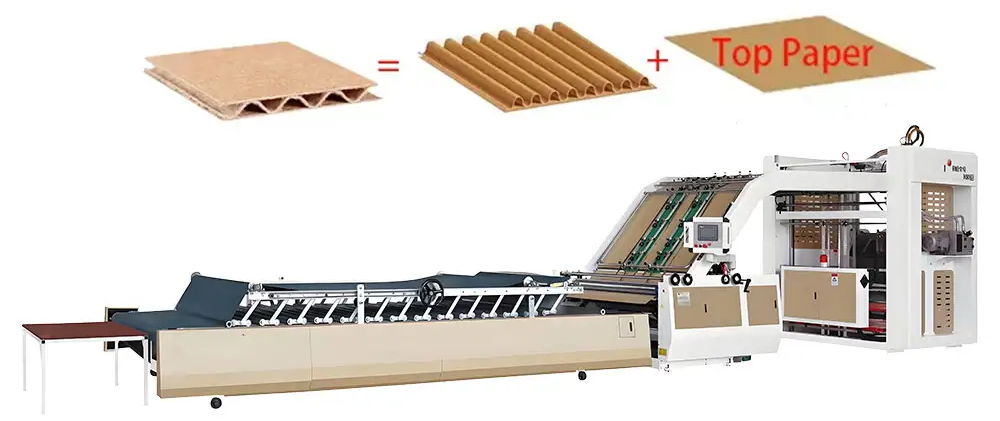

Automatic Corrugated Flute Laminating Machine are designed for laminating cardboard and cardboard, cardboard and corrugated board(Flute shape A, B, C, D, E, F and N), 3-layer, 5-layer, or 7-layer corrugated paperboard all can be laminated smoothly and accurately. Automatic Corrugated Flute Laminating Machine Famous internal or foreign foreign manufacturers make all Automatic Corrugated Flute Laminating Machine main components with long service life and excellent stability. Electrical components of internationally known brands are adopted to ensure reliability of running. Automatic Corrugated Flute Laminating Machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc

   Automatic Corrugated Flute Laminating Machine

• Automatic Corrugated Flute Laminating Machine Suitable for laminating of cardboard and corrugated cardboard in 150-400 g/m2 .
• Automatic Corrugated Flute Laminating Machine vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that moreefficient.
• Automatic Corrugated Flute Laminating Machine Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking. Automatic Corrugated Flute Laminating Machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.
• Automatic Corrugated Flute Laminating Machine uses touch-screen/PLC/servo motor control system, double frequency control type, the circuit system is stable, and can automatically display the failure
• Automatic Corrugated Flute Laminating Machine Automatic gluing, and the glue can be used circulatory, avoid glue waste.
• Automatic Corrugated Flute Laminating Machine Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.
• Automatic Corrugated Flute Laminating Machine Pressure rollers adopt unilateral adjustment, convenient and fast.
• Automatic Corrugated Flute Laminating Machine Cleaning type : bottom roller is extruded by rubber roller to clean the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper . Make glue etc. foreign matter after washing direct subside in tank. At the same time , adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash .
• Automatic Corrugated Flute Laminating Machine pressure conveyor adopt floating movable structure , total length 5m , equipped with 28 paper pressing rollers , make the cardboard uniform bearing strength in pressing process.
• Automatic Corrugated Flute Laminating Machine Counter designs scientifically, easy recording the amount you have been worked.



Automatic Corrugated Flute Laminating Machine
Model	1300	1450	1650
Max laminating size (mm)	1300×1250	1400×1250	1600×1250
Min laminating size (mm)	400×400	400×400	400×400
Economic speed (sheets/min)	0 - 100 sheets/min	0 - 100 sheets/min	0 - 100 sheets/min
Laminating precision (mm)	±1.5	±1.5	±1.5
Power (kw)	10	12	12
Machine dimensions (L×W×H) (m)	13.5×2×2.4	13.5×2.05×2.4	13.5×2.25×2.4
Weight (ton)	About 4.2	About 4.4	About 4.7





  Why Choose Us Automatic Corrugated Flute Laminating Machine?

25+ Years of Expertise: Proven excellence in R&D, manufacturing, and service.

Customized Solutions: Adaptable designs to suit unique client requirements.

Quality Assurance: ISO-certified production processes and rigorous testing.

Global Network: Efficient logistics and technical support worldwide.

Committed to driving innovation in packaging technology, Cangzhou Maiken Machinery Equipment Co., Ltd. remains your trusted partner for smart,

sustainable, and cost-effective solutions.
