Full-auto Flexo Carton box printing gluer stitcher line

Full-auto Flexo Carton box printing gluer stitcher line

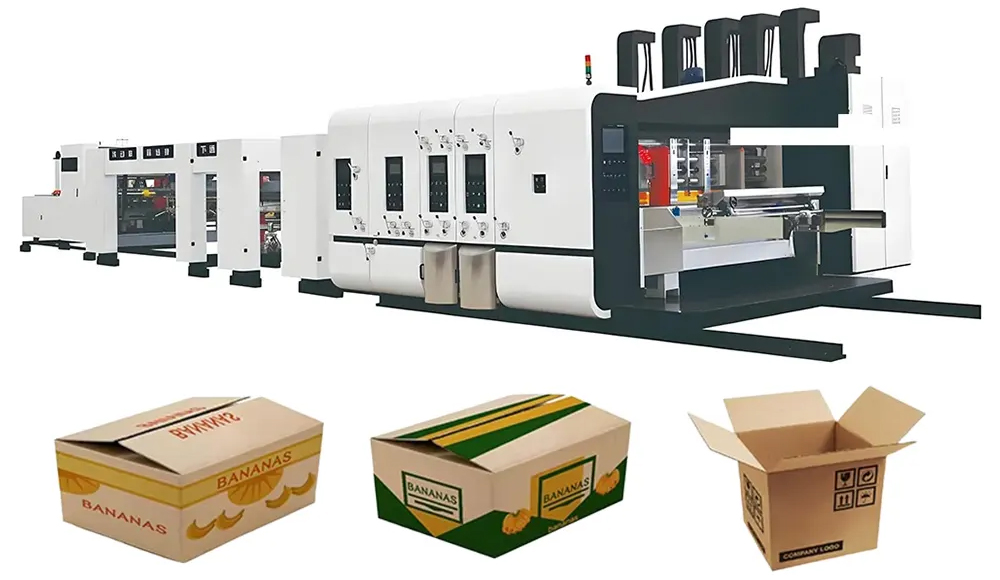

Full-auto Flexo Carton box printing gluer stitcher line is an automated production line integrating carton folding, positioning, gluing, bonding, pressing, and output. Full-auto Flexo Carton box printing gluer stitcher line ingeniously integrates multiple independent steps of traditional manual carton gluing into a continuous assembly line. Through the integration of mechanics, electronics, pneumatics, and other disciplines, Full-auto Flexo Carton box printing gluer stitcher line achieves high-efficiency, standardization, and intelligence in carton production.

Full-auto Flexo Carton box printing gluer stitcher line
ITEM	CONTENT	MIN.	MAX.
L	Cardboard Feeding Width	1040	2900
W	Cardboard Width	350	1200
W	Skip Feeding	350	1400
F	Box Height	110	600
E	Slotting Depth	0	300
P	Glue Flap	25	45
WxH	Max. Printing Area	-	1200x2800mm
BxCxBxC	Min. Slotting Space (Revised Knife)	260x80x260x80mm	-
Printing Plate Thickness	-	7.2mm	-
Printing Accuracy	-	±0.5mm	-
Cardboard Thickness	-	1.5 - 11mm	-
Speed (sheets/min.)	Max. Speed	-	260sheets/min
	Economic Working Speed	-	150 - 260sheets/min
Total Power	-	-	178 Kw
Working Power	-	-	About 120 Kw
Frame Thickness	-	-	60mm



Full-auto Flexo Carton box printing gluer stitcher line

01-Full-auto Flexo Carton box printing gluer stitcher line Paper feeding section ：Adopt the leading edge roller paper feeding system, which can greatly improve the paper feeding stability of the curved cardboard.

02-Full-auto Flexo Carton box printing gluer stitcher line Printing unit ：Top printing, Vacuum transfer, Dynamic and static balance correction, stable operation.

03-Full-auto Flexo Carton box printing gluer stitcher line Slotting unit ：Full-auto Flexo Carton box printing gluer stitcher line surface of the creaser roller and the scorer wheel are ground, hard chrome plated, and move smoothly,Do balance correction, stable operation.

04-Full-auto Flexo Carton box printing gluer stitcher line Die-cutter ：Full-auto Flexo Carton box printing gluer stitcher line cardboard is punched into shape through a die mold, forming creases and incisions on the flat carton blank.

05-Full-auto Flexo Carton box printing gluer stitcher line Waste removal, Folding delivery section、 Nailing ：They work in coordination to complete the key processes from cardboard processing to carton forming.

Waste removal： Full-auto Flexo Carton box printing gluer stitcher line paper conveyor moves the position independently, Easy to adjust. The paper-walking belt is equipped with a paper roller, a fan, and a brush to clean up the waste paper waste to the greatest extent Guide wheel device, upper and lower belt clamping and transmission Electric left and right walking, easy to adjust the size and size

Rubbering wheels ：Made of stainless steel, it is more durable and corrosion-resistant. The gluing bucket is guided by linear guide rails, and the adjustment is stable and accurate.

 Folding： Fold the carton down. There are correction plates. The second correction crimping

 Delivery section： Shoot the number of points and roll out with an accurate number by counting the eyes, counting, and correcting

Nailing：High-speed nail head, 1200 nails per minute .Automatic lubrication system for nail heads .The nail head is driven by servo motor .Three servo motors drive the paper feeding .Correction baffle servo motor drive.

06-Full-auto Flexo Carton box printing gluer stitcher line PE Fully automatic baler：Full-auto Flexo Carton box printing gluer stitcher line motor adopts frequency conversion control, starts, runs smoothly, and can adjust the speed of the whole part according to the size of the carton.

07-Full-auto Flexo Carton box printing gluer stitcher line Palletizer ：8 servo motors work in linkage, with a high degree of automation and unmanned automatic operation.

•   Why Choose Us? Full-auto Flexo Carton box printing gluer stitcher line

25+ Years of Expertise: Proven excellence in R&D, manufacturing, and service.

Customized Solutions: Adaptable designs to suit unique client requirements.

Quality Assurance: ISO-certified production processes and rigorous testing.

Global Network: Efficient logistics and technical support worldwide.

Committed to driving innovation in packaging technology, Cangzhou Maiken Machinery Equipment Co., Ltd. remains your trusted partner for smart,

sustainable, and cost-effective solutions.

•    Our Company

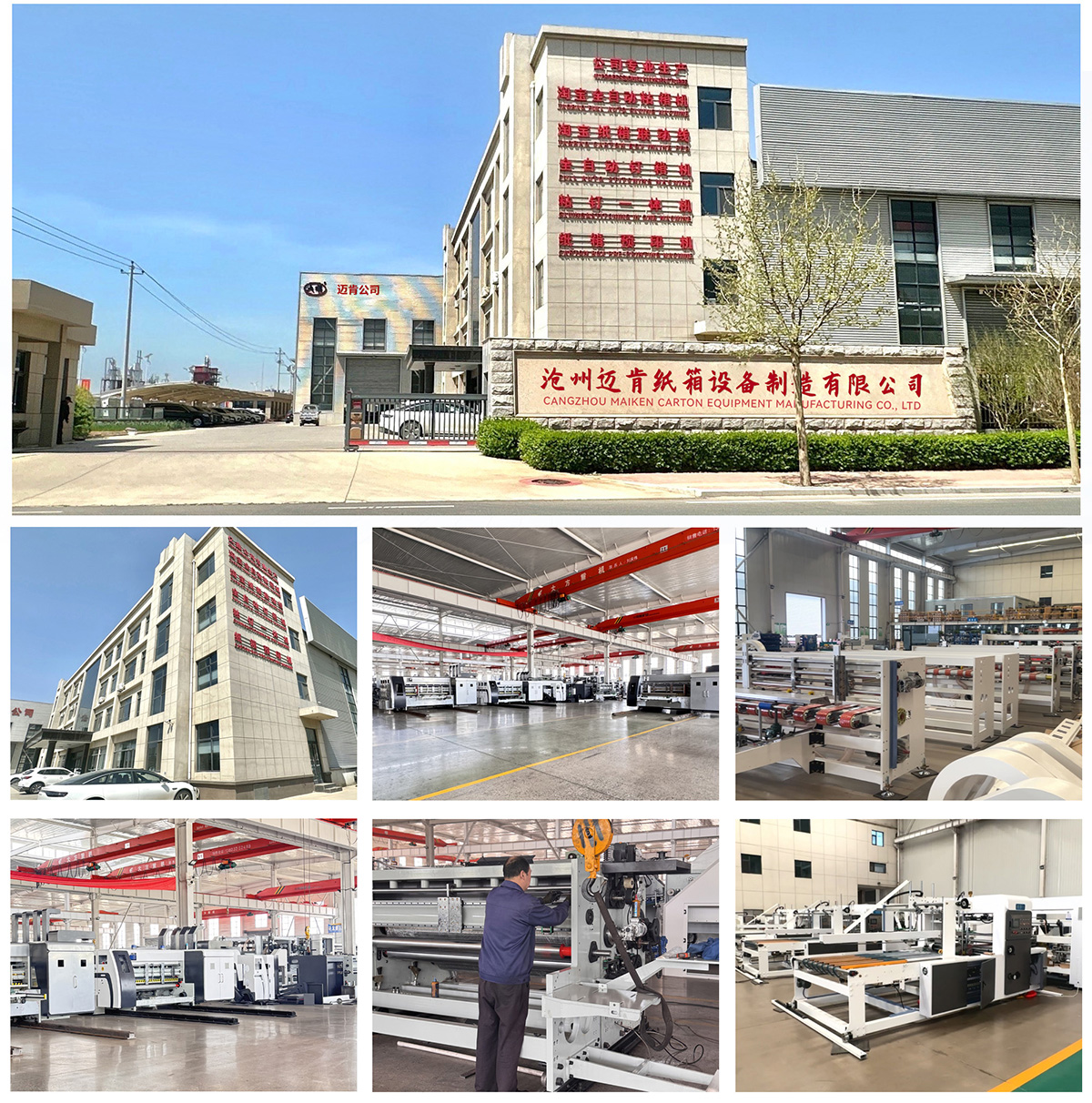

For over 25 years, Cangzhou Maiken Machinery Equipment Co., Ltd. has stood as a leading manufacturer of advanced packaging machinery, delivering innovative solutions to clients worldwide. With a dedicated team of 200 professionals, we specialize in designing and producing high-performance, intelligent equipment tailored to meet the diverse needs of the global packaging industry. We pride ourselves on offering a comprehensive range of carton equipment, including high-speed intelligent carton production lines, high-speed water-based ink printing, slotting and die-cutting machines, fully automatic gluing & stapling combination machines, fully automatic carton gluing machines and fully automatic carton stapling machines. Our cutting-edge machinery combines precision engineering with smart automation, ensuring efficiency, durability, and sustainability for businesses of all scales. Over the years, our products have earned widespread acclaim across domestic and international markets. We serve clients in multiple countries and regions, building long-term partnerships through reliable performance and exceptional after-sales support.
