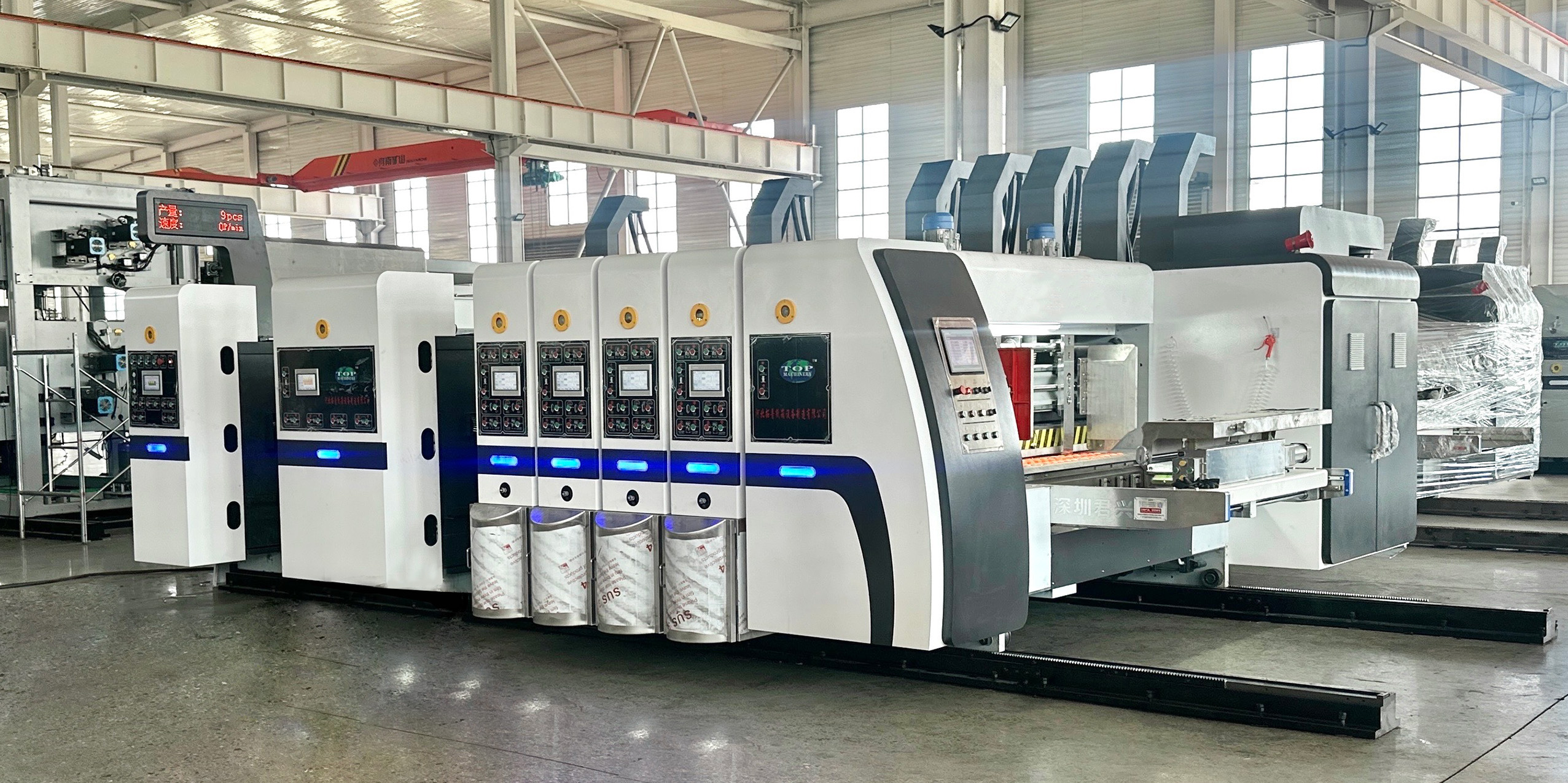

Automatic carton box printing machine

Automatic carton box printing machine

 Automatic carton box printing machine

◆Automatic carton box printing machine designed According to the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a shot time, and display with a exact data.
◆Automatic carton box printing machine  all the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish.
◆ Automatic carton box printing machine drive gears adopt high quality alloy steel, after heat treatment and lapping finish.
◆Automatic carton box printing machinee The main drive roller adopt keyless connect, decrease the connection gap, guarantee the printing precision.
◆Automatic carton box printing machine Lubricate oil automatic balance device, keep the equal oil level equal in each unit.
◆Automatic carton box printing machine Carton box printing machine  adopt PLC control, with"automatic zero return"and"memories"function.
◆Automatic carton box printing machine Use sun feeder for feed the cardboard.
◆Automatic carton box printing machine Customer can choose use steel anilox roller or ceramic roller, the lines of the anilox roller ac so can be chosed according the customer

Automatic carton box printing machine
Model number	Unit	920	1224	1424	1628
Roller diameter	mm	φ300	φ410	φ480	φ530
Max.Feeding Size	mm	900×2100	1200×2500	1400×2500	1600×2900
Max.Printing Area	mm	900×2000	1200×2400	1400×2400	1600×2800
Min.Feeding Size	mm	300×600	320×640	340×640	360×640
Thickness of cardboard	mm	2 - 11	2 - 11	2 - 11	2 - 11
Standard thickness of printing plate	mm	7.2	7.2	7.2	7.2
Max.speed	pcs/min	300	200	180	160



• Automatic carton box printing machine working principle

Carton printing machine,first the text and images to be printed are made into a printing plate and mounted on the machine. Operate the machine to evenly

apply  ink to the area of the printing plate with content, and then directly or indirectly transfer it to the corrugated board/carton to reproduce a printed matter identical to the printing plate. The digital inkjet printer does not require plate making; it can perform non-contact inkjet printing just by importing the image

file.

•  Automatic carton box printing machine features and advantages

• Automatic carton box printing machine high degree of automation: Such as the fully automatic high-speed models, they adopt a human-machine interface and computer order management. Orders can be pre-stored, order change is fast, and processes like paper feeding and printing can automatically reset to zero and perform memory reset, reducing manual operations.
• Automatic carton box printing machine fast printing speed: For example, the Chuangxin Brand 1428-type high-speed water-based ink printing and slotting machine has a speed of up to 180 sheets per minute, and the Huayin HY - C series printing machines have a printing speed of 12,000 sheets per hour, improving production efficiency.
• Automatic carton box printing machine high printing precision: The shafts and rollers of the whole machine are made of high-quality steel, undergo grinding and high-precision computer dynamic balance correction, and are chrome-plated on the surface; the transmission gears are treated with alloy steel to ensure color register precision.
• Automatic carton box printing machine easy to operate: Equipped with an independent control touch screen and full digital control, workers can operate it after simple training, reducing the technical requirements for operators.
• Automatic carton box printing machine energy - saving and environmentally friendly: Use water-based ink, which is pollution-free. Some equipment is equipped with a waste ink recycling device, and the main machine adopts frequency conversion control for more energy saving.

  Why Choose Us?

25+ Years of Expertise: Proven excellence in R&D, manufacturing, and service.

Customized Solutions: Adaptable designs to suit unique client requirements.

Quality Assurance: ISO-certified production processes and rigorous testing.

Global Network: Efficient logistics and technical support worldwide.

Committed to driving innovation in packaging technology, Cangzhou Maiken Machinery Equipment Co., Ltd. remains your trusted partner for smart,

sustainable, and cost-effective solutions.

•    Our Company

For over 25 years, Cangzhou Maiken Machinery Equipment Co., Ltd. has stood as a leading manufacturer of advanced packaging machinery, delivering innovative solutions to clients worldwide. With a dedicated team of 200 professionals, we specialize in designing and producing high-performance, intelligent equipment tailored to meet the diverse needs of the global packaging industry. We pride ourselves on offering a comprehensive range of carton equipment, including high-speed intelligent carton production lines, high-speed water-based ink printing, slotting and die-cutting machines, fully automatic gluing & stapling combination machines, fully automatic carton gluing machines and fully automatic carton stapling machines. Our cutting-edge machinery combines precision engineering with smart automation, ensuring efficiency, durability, and sustainability for businesses of all scales. Over the years, our products have earned widespread acclaim across domestic and international markets. We serve clients in multiple countries and regions, building long-term partnerships through reliable performance and exceptional after-sales support.
